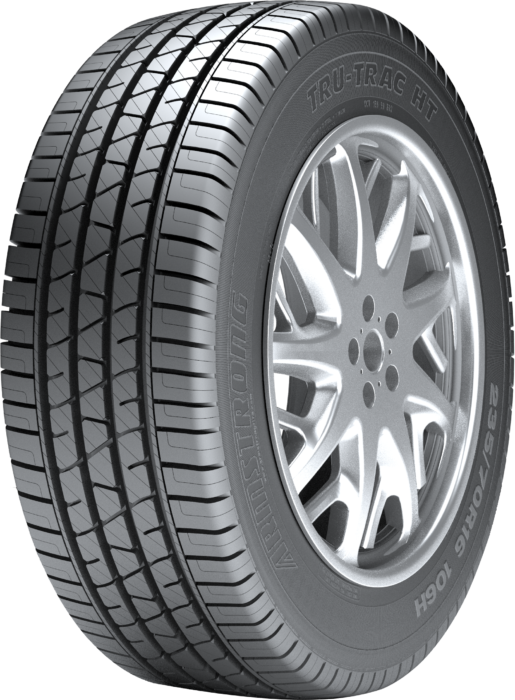

TRU-TRAC HT
All-Season

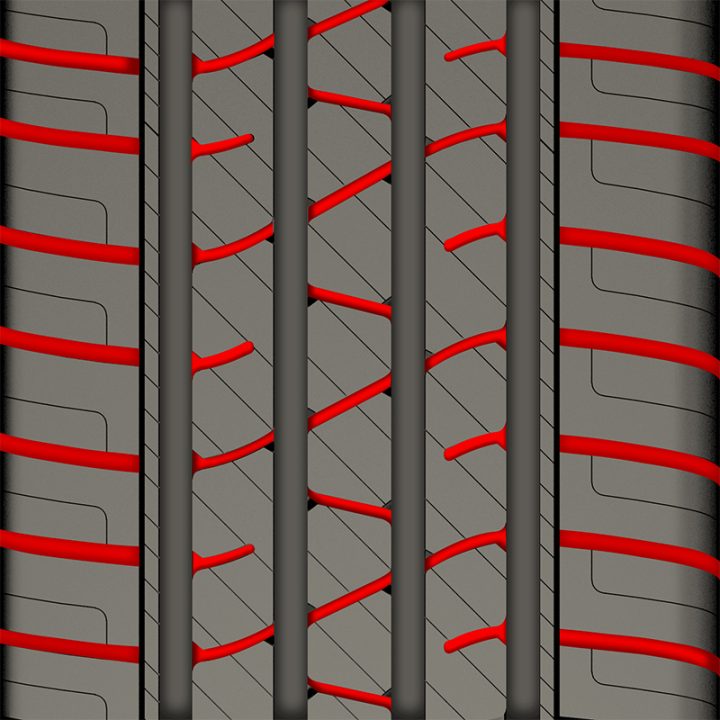

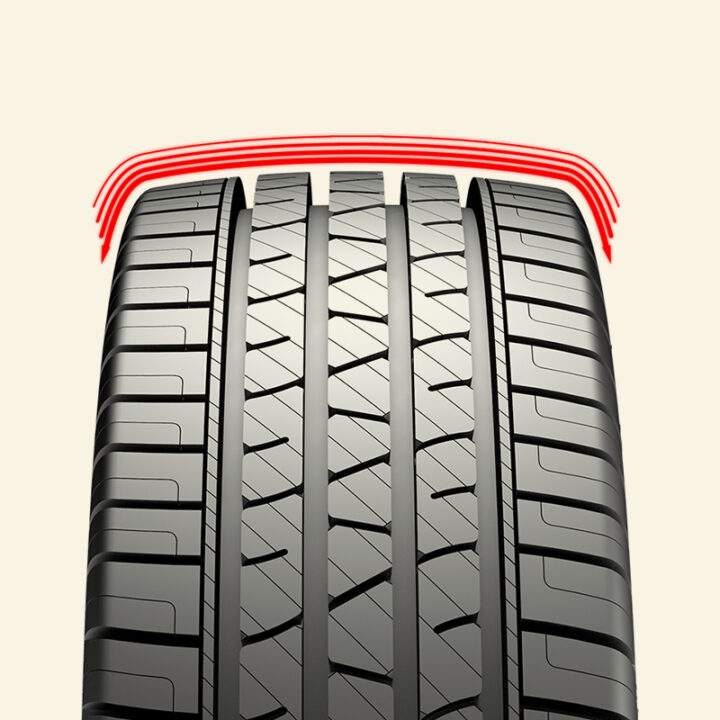

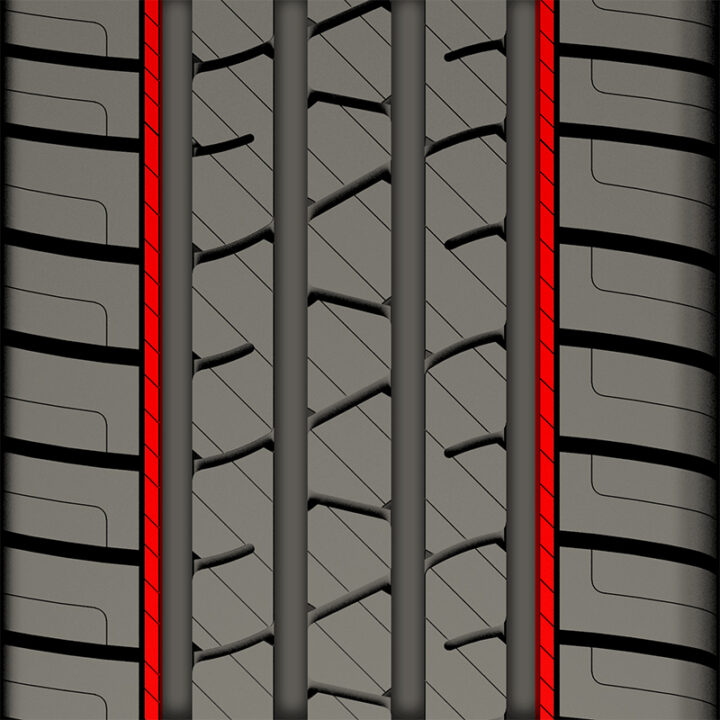

True to the Armstrong TRU-TRAC legacy, this Highway Terrain tire provides greater towing ability and increased grip under skidding conditions. An optimized curved tread increases tire rigidity and reduces rolling resistance, while a noise-blocking bar reduces premature wear and road traction noise.
Category: Highway Terrain
Rating: UTQG 740 A A
Features
Specifications
| Ascept Ratio | Tire Size | Load & Speed Index | PR | Maximum Load Single (lbs) | Maximum Load Dual (lbs) | Maximum Inflation Pressure (psi) | Rim Width (inches) | Section Width (inches) | Overall Diameter (inches) | Tread Depth (32nds) |
|---|---|---|---|---|---|---|---|---|---|---|
| 75 | 235/75R15 | 109H XL | - | - | 2270 | 50 | 6.5 | 9.3 | 28.7 | 13 |
| 70 | 215/70R16 | 100H | - | - | 1765 | 44 | 6.5 | 8.8 | 27.8 | 11 |
| 225/70R16 | 103H | - | - | 1930 | 44 | 6.5 | 9.1 | 28.3 | 11 | |
| 235/70R16 | 106H | - | - | 2095 | 44 | 7 | 9.6 | 29 | 11 | |
| 245/70R16 | 111H XL | - | - | 2405 | 50 | 7 | 9.8 | 29.4 | 11 | |
| 265/70R16 | 112H | - | - | 2470 | 44 | 8 | 10.7 | 30.4 | 11 | |
| 265/70R17 | 115H | - | - | 2680 | 44 | 8 | 10.8 | 31.7 | 13 | |
| 255/70R18 | 113H | - | - | 2535 | 44 | 7.5 | 10.1 | 32 | 12 | |
| 65 | 225/65R17 | 102H | - | - | 1875 | 44 | 6.5 | 9.1 | 28.4 | 11 |
| 235/65R17 | 108V XL | - | - | 2205 | 50 | 7 | 9.4 | 29 | 13 | |
| 245/65R17 | 107H | - | - | 2150 | 44 | 7 | 9.8 | 29.5 | 9 | |
| 265/65R17 | 112H | - | - | 2470 | 44 | 8 | 10.7 | 30.5 | 12 | |
| 265/65R18 | 114H | - | - | 2600 | 44 | 8 | 10.7 | 31.5 | 12 | |
| 60 | 265/60R18 | 110H | - | - | 2335 | 44 | 8 | 10.6 | 30.5 | 13 |
| 275/60R20 | 115H | - | - | 2680 | 44 | 8 | 11 | 33 | 13 | |
| 55 | 275/55R20 | 117H XL | - | - | 2835 | 50 | 8.5 | 11 | 31.9 | 13 |
| 85 | LT 235/85R16 | 120/116S | 10 | 3085 | 2755 | 80 | 6.5 | 9.6 | 31.6 | 15 |
| 80 | LT 235/80R17 | 120/117R | 10 | 3085 | 2835 | 80 | 6.5 | 9.4 | 31.7 | 14 |
| 75 | LT 225/75R16 | 115/112T | 10 | 2680 | 2470 | 80 | 6 | 8.7 | 29.3 | 14 |
| LT 245/75R16 | 120/116S | 10 | 3085 | 2755 | 80 | 7 | 9.6 | 30.5 | 10 | |
| LT 265/75R16 | 123/120S | 10 | 3415 | 3085 | 80 | 7.5 | 10.5 | 31.6 | 16 | |
| LT 285/75R16 | 126/123R | 10 | 3750 | 3415 | 80 | 8 | 11.7 | 32.6 | 17 | |
| LT 245/75R17 | 121/118S | 10 | 3195 | 2910 | 80 | 7 | 9.8 | 31.5 | 15 | |
| 70 | LT 265/70R17 | 121/118T | 10 | 3195 | 2910 | 80 | 8 | 10.5 | 31.7 | 16 |
| LT 285/70R17 | 121/118S | 10 | 3195 | 2910 | 80 | 8 | 11.1 | 32.8 | 16 | |
| LT 275/70R18 | 125/122S | 10 | 3640 | 3305 | 80 | 8 | 10.7 | 32.8 | 16 | |
| 65 | LT 275/65R18 | 123/120R | 10 | 3415 | 3085 | 80 | 8 | 10.8 | 32.1 | 16 |
