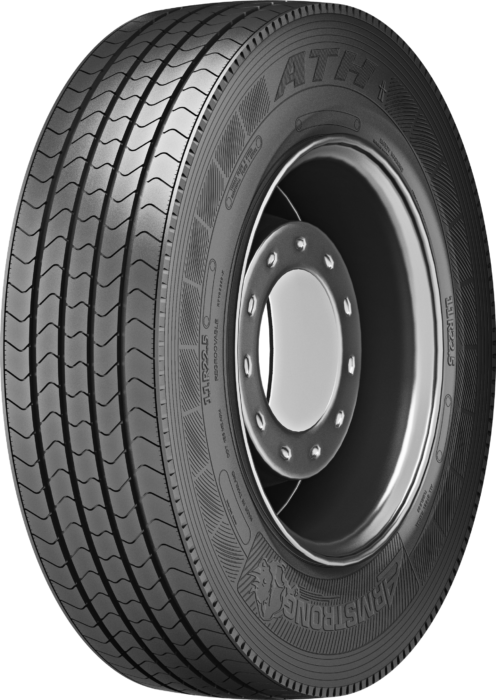

ATH
Trailer
A premium trailer tire for long haul applications with uniquely designed shoulder grooves that provide resistance to uneven shoulder wear, shallow tread to reduce rolling resistance and heat buildup, and circumferential grooves for exceptional handling in wet conditions.
Category: Long Haul
EPA SmartWay® Verified
Features
Specifications
| Tire Size | PR | Load & Speed Index | Rim Width (inches) | Maximum Load Single (lbs) | Maximum Load Dual (lbs) | Maximum Inflation Pressure (psi) | Section Width (inches) | Overall Diameter (inches) | Tread Depth (32nds) |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16 | 148/145L | 8.25 | 6940 | 6395 | 125 | 11.0 | 40.9 | 13 |
| 295/75R22.5 | 14 | 144/141L | 9.00 | 6175 | 5675 | 110 | 11.3 | 39.9 | 13 |
| 11R24.5 | 16 | 149/146M | 8.25 | 7160 | 6610 | 120 | 11.1 | 43.0 | 13 |
| 285/75R24.5 | 14 | 144/141L | 8.25 | 6175 | 5675 | 110 | 10.9 | 41.0 | 13 |
