All Tires

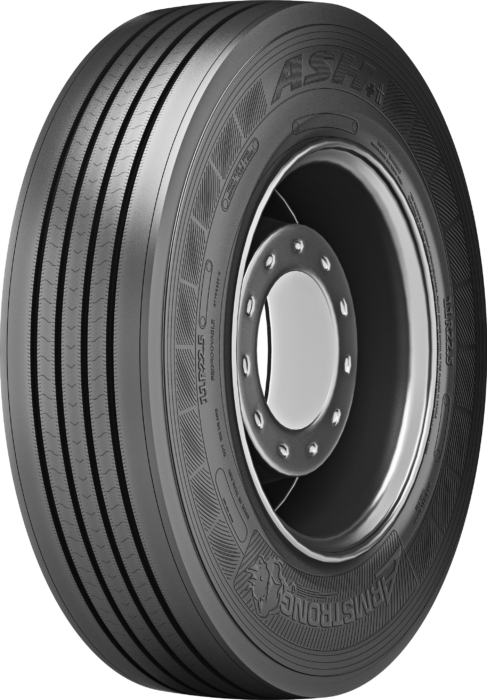

ASH+
Steer Axle
A premium steer axle tire for long-haul applications with unique tread design for excellent road grip and wet traction and siping to ensure sharp steering and noise reduction. Decoupling grooves and wider shoulder ribs also help minimize irregular wear.
Category: Long Haul
EPA SmartWay® Verified
Features
Specifications
| Tire Size | PR | Load & Speed Index | Rim Width (inches) | Max. Load (Single) (lbs) | Max. Load (Dual) (lbs) | Inflation Pressure (psi) | Section Width (inches) | Overall Diameter (inches) | Tread Depth (32nds) |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16 | 146/143M | 8.25 | 6615 | 6010 | 125 | 11.0 | 41.3 | 18 |
| 295/75R22.5 | 16 | 148/145L | 9.00 | 6945 | 6395 | 125 | 11.4 | 40.3 | 18 |
| 11R24.5 | 14 | 146/143M | 8.25 | 6615 | 6010 | 105 | 11.2 | 43.4 | 18 |
| 11R24.5 | 16 | 149/146M | 8.25 | 7165 | 6615 | 120 | 11.2 | 43.4 | 18 |
| 285/75R24.5 | 14 | 144/141L | 8.25 | 6175 | 5675 | 110 | 11.0 | 41.4 | 18 |
