ADR2
Drive Axle

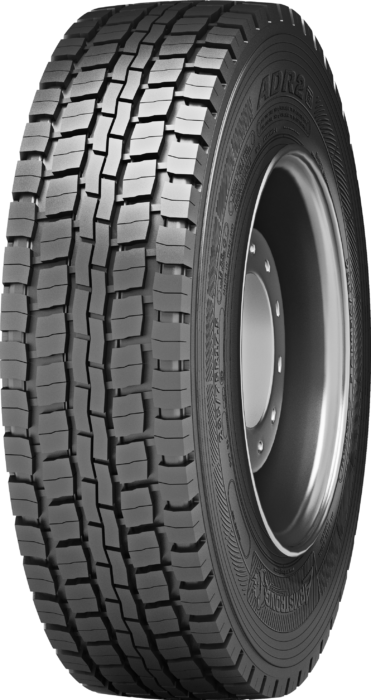

A drive axle tire for regional applications with a unique five-lug pattern that provides a firm grip and cornering ability, a uniform tread block designed to bear loads evenly, and deeper and wider grooves for increased mileage and enhanced service life.
Category: Regional
Features
Specifications
| Tire Size | PR | Load & Speed Index | Rim Width (inches) | Max. Load (Single) (lbs) | Max. Load (Dual) (lbs) | Inflation Pressure (psi) | Section Width (inches) | Overall Diameter (inches) | Tread Depth (32nds) |
|---|---|---|---|---|---|---|---|---|---|
| 215/75R17.5 | 14 | 126/124L | 6.00 | 3750 | 3525 | 120 | 8.3 | 30.4 | 16 |
| 235/75R17.5 | 18 | 143/141J | 6.75 | 6010 | 5675 | 125 | 9.3 | 31.5 | 16 |
