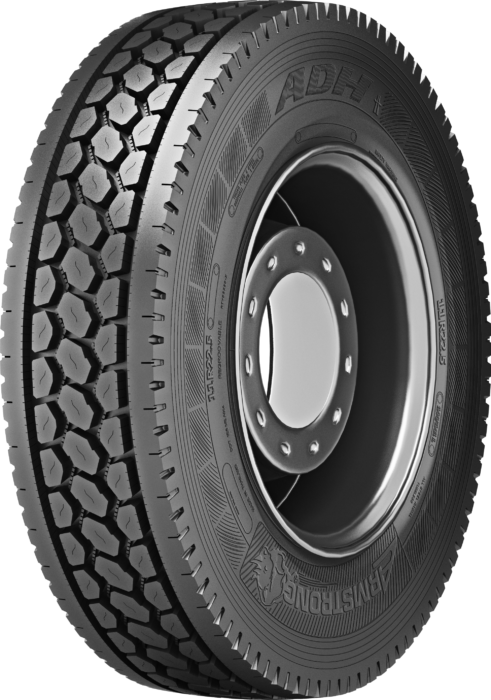

ADH
Drive Axle
A premium drive axle tire that can be used for both long-haul and regional applications offering a deeper tread for increased mileage, closed and solid shoulder ribs for resistance against uneven wear, and optimized block design to protect against stone retention.
Category: Long Haul
EPA SmartWay® Verified
Features
Specifications
| Tire Size | PR | Load & Speed Index | Rim Width (inches) | Max. Load (Single) (lbs) | Max. Load (Dual) (lbs) | Inflation Pressure (psi) | Section Width (inches) | Overall Diameter (inches) | Tread Depth (32nds) |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 14 | 144/141L | 8.25 | 6175 | 5675 | 110 | 11.2 | 42.0 | 29 |
| 11R22.5 | 16 | 148/145L | 8.25 | 6945 | 6395 | 125 | 11.2 | 42.0 | 29 |
| 295/75R22.5 | 14 | 144/141L | 9.00 | 6175 | 5675 | 110 | 11.5 | 40.9 | 29 |
| 11R24.5 | 16 | 149/146L | 8.25 | 7165 | 6615 | 120 | 11.2 | 44.3 | 29 |
| 285/75R24.5 | 14 | 144/141L | 8.25 | 6175 | 5675 | 110 | 11.1 | 42.3 | 29 |
